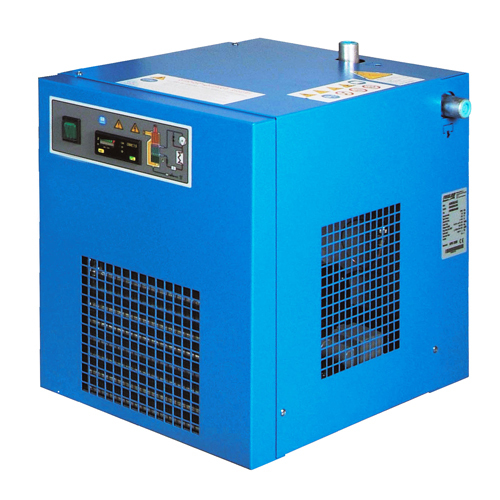

Compressed Air Dryer

Compressed Air Dryer

Model: KCR20 to KCR1000

Working pressure: 5-16 bar

Capacity: 20-1000 CFM

Designed to remove moisture from compressed air to ensure the reliability and longevity of downstream equipment. Moisture present in compressed air can lead to corrosion, contamination, and reduced efficiency of tools and machinery.

Reliable system protection: Our refrigerated dryers offer a reliable, economic and simple solution to avoid condensation and thereby corrosion in your systems.
Minimal maintenance, maximum uptime: Our ranges of refrigerant dryers require a minimum of maintenance and hence can deliver a maximum of uptime. Reducing your production costs through less downtime .
Easy to install: Our refrigerated air dryers follow the plug-and-play concept, meaning you can easily install your unit.

Compressed Air Dryer Models

Model	Airflow		Max. Operating Pressure		Power Supply (V/Ph/Hz)	Version	End Connection	Dimensions (mm)
Model	m³/min	cfm	kg/cm²	psi	Power Supply (V/Ph/Hz)	Version	End Connection	L	W	H
S20R	0.57	20	12.5	178	230/1/50	Air Cooled	½"	480	400	625
S40R	1.13	40	12.5	178	230/1/50	Air Cooled	¾"	480	400	625
S60R	1.7	60	12.5	178	230/1/50	Air Cooled	¾"	480	400	625
S80R	2.27	80	12.5	178	230/1/50	Air Cooled	1"	680	560	850
S100R	2.83	100	12.5	178	230/1/50	Air Cooled	1"	680	560	850
S125R	3.54	125	12.5	178	230/1/50	Air Cooled	1¼"	680	560	850
S150R	4.25	150	12.5	178	230/1/50	Air Cooled	1¼"	680	560	850
S200R	5.66	200	12.5	178	230/1/50	Air Cooled	1½"	750	650	1000
S250R	7.08	250	12.5	178	230/1/50	Air Cooled	1½"	750	650	1000
S300R	8.49	300	12.5	178	230/1/50	Air Cooled	1½"	750	650	1000
S350R	9.91	350	12.5	178	415/3/50	Air Cooled	2"	950	850	1250
S450R	12.74	450	12.5	178	415/3/50	Air Cooled	2"	1000	900	1400
S550R	15.57	550	12.5	178	415/3/50	Air Cooled	2½"	1000	900	1400
S650R	18.41	650	12.5	178	415/3/50	Air Cooled	2½"	1000	900	1400
S750R	21.24	750	12.5	178	415/3/50	Air Cooled	2½"	1000	900	1400
S900R	25.40	900	12.5	178	415/3/50	Air Cooled	3"	1250	1000	1550
S1000R	28.32	1000	12.5	178	415/3/50	Air Cooled	3"	1250	1000	1550
S1100R	31.15	1100	12.5	178	415/3/50	Air Cooled	3"	1250	1000	1550
