Reciprocating Compressors

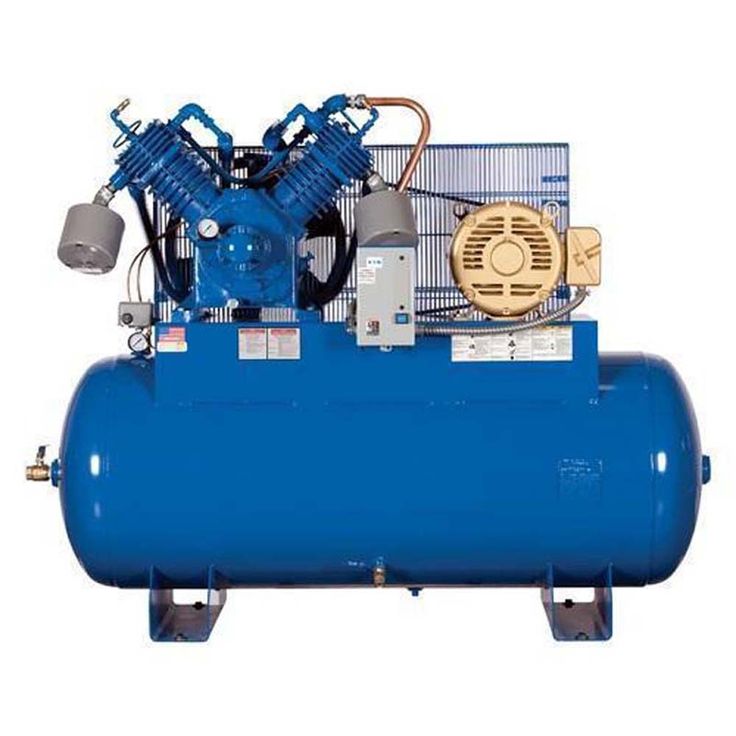

kcb7.5fs

Reciprocating Compressors

Working pressure: 8.62 bar

Capacity: 6.99/14.01/23.36 m3/min

Designed for heavy industrial applications, the two stage reciprocating air compressors provide the quality and performance that exceed customer requirements.

Durable cast-iron, Single and tw o-stage design offers extended pump life for years of trouble-free service.
Automatic start / stop control / pressure switch operation.
175 PSI maximum operating pressure.
100% continuous duty for tough applications.
Includes motor starter, manual drain.

Standard Pressure Receiver Mounted Package

Model	Motor (hp)	Piston Displacement (m³/hr)	Piston Displacement (cfm)	Maximum Working Pressure (bar)	Maximum Working Pressure (psi g)	Air Receiver Option (litre)
GD SS1	1	6.90	4.12	8.62	125	100
GD SS2	2	14.01	8.25	8.62	125	150
GD SS3	3	23.36	13.75	8.62	125	150
GD SS3 - 1 Phase	3	23.36	13.75	8.62	125	150

Reciprocating Compressors Models

Model	Motor (hp)	Free Air Delivery (cfm)	Pressure in psig (rated)	Air Receiver (litre)	Starter Type (meter)	Control
GD 2340F 3	3.0	8.65	175	150	Direct Online	Automatic Start-Stop
GD 2475C 5	5.0	13.99	175	225	Direct Online	Automatic Start-Stop
GD 2475C 7.5	7.5	17.77	175	225	Direct Online	Automatic Start-Stop
GD 2545D 7.5	7.5	24.18	150	300	Direct Online	Automatic Start-Stop
GD 2545D 7.5	7.5	24.18	150	300	Direct Online	Constant Speed Control
GD 2545D 10	10.0	30.00	175	300	Direct Online	Automatic Start-Stop
GD 2545E 10	10.0	30.00	175	500	Direct Online	Constant Speed Control
GD 2545E 12.5	12.5	35.00	175	500	Automatic Star Delta	Automatic Start-Stop
GD 7100E 15	15.0	42.91	175	500	Automatic Star Delta	Automatic Start-Stop
GD 15TE 20	20.0	59.80	125	500	Automatic Start-Stop	Constant Speed Control
GD 15TE 25	25.0	79.20	125	500	Automatic Start-Stop	Constant Speed Control
GD 15TE 25	25.0	79.20	125	500	Automatic Start-Stop	Automatic Start-Stop
