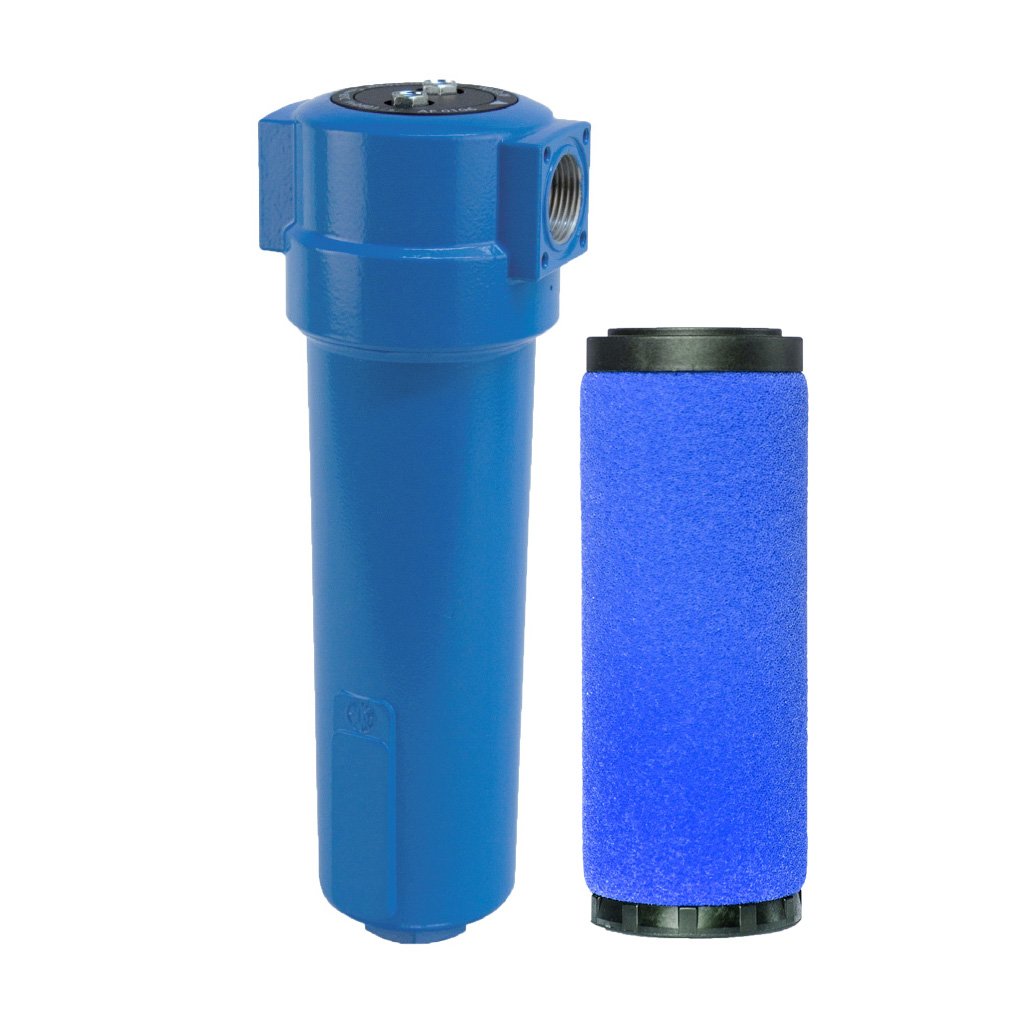

Compressed Air Filters

Compressed Air Filters

Working pressure: 0-16 bar

Capacity: 1.2-49.0 m3/min

Normally compressed air contains highconcentrations of dust, oil, moisture and therimpurities.

These contaminants can lead to high-maintenance costs and result in damageto equipment and finished products.

Ourfilters have been specifically designed toprevent these problems, by offering a widerange of filters for compressed air able tosatisfy the most various industry needs.

The high efficiency of the elements whichis able to offer a high capability of retention(99,999%) and very low pressure drops.

final result is an extremely purifiedcompressed air and low operating costs.

A partner to build your brand: A wide range of air compress can meet your different demands of different fields.
Working with you: We always work for supplying best quality, and service to our clients.
Reducing your cost: Small space usage, simplified installation, free on line tech. service, less energy consumption.

Compressed Air Dryer Models

Model	Max. Flow Rate		Max. Operating Pressure		End Conn. (BSP)	Dimensions (mm)			Weight (Kg)
Model	m³/min	CFM	Kg/cm²	psi	End Conn. (BSP)	A	B	C	Weight (Kg)
SXF-16	0.99	35	12.5	178	½″	245	220	104	1.3
SXF-20	1.73	61	12.5	178	1″	315	290	104	1.5
SXF-24	2.89	102	12.5	178	1¼″	425	385	138	2.9
SXF-28	4.9	173	12.5	178	1½″	425	385	138	2.9
SXF-32	7.19	254	12.5	178	1½″	625	585	138	3.8
SXF-36	10.7	378	12.5	178	1½″	625	585	138	3.8
SXF-40	13.99	494	12.5	178	2″	685	640	150	9.5
SXF-44	19.11	625	12.5	178	2″	850	800	150	12.2
SXF-44	19.11	625	12.5	178	2½″	850	800	150	12.2
SXF-48	22	777	12.5	178	2½″	990	940	148	13.8
